Description:

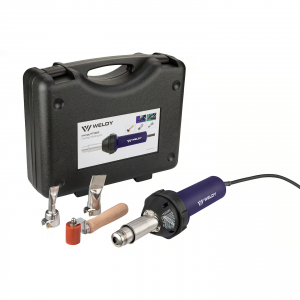

In the energy HT1600 overlap welding kit includes a heat gun and important accessories for overlap welding thermoplastic membranes and technical textiles made of PVC (vinyl) and TPO. The kit, which is suitable for both professionals and beginners, includes two wide-slit nozzles (40 mm wide-slot nozzle - article no. 130.891 and 20 mm wide-slot nozzle - article no. 130.631), a 40 mm pressure roller (article no. 130.611) and spare carbon brushes (article no. 125.810).
The Weldy HT1600 heat gun is characterized by its stepless temperature adjustment from 40°C (104°F) to 700°C (1290°F). Weldy's five-piece energy HT1600 overlap welding kit is ideal for welding roofing membranes, technical textiles and other thermoplastics such as PVC (vinyl) and TPO in construction, commercial and DIY
applications.
Specification:
VOLTAGE | 120V / 230V |
---|---|
FREQUENCY | 50/60 Hz; 60 Hz |
POWER | 1600W |
TEMPERATURE | 40 - 700 °C / 104.0 - 1292.0 °F |
TEMPERATURE SETTING STEPLESS | Yes |
AIRFLOW (20°C) | 240 l/min / 8.47 cfm |
STEPLESS AIR VOLUME ADJUSTMENT | No |
STATIC PRESSURE | 2600 Pa / 0.37 psi |
ECO-MODE | No |
DISPLAY | No |
E-DRIVE | No |
OUTDOOR USE | Yes |
NOZZLE CONNECTION Ø | 31.5 mm / 1.25 in |
LENGTH | 346.0 mm / 13.62 in |
DEVICE DIAMETER | 101 mm / 3.97 in |
HANDLE DIAMETER | 59 mm / 2.32 in |
WEIGHT | 0.99 kg / 2.18 lb |
POWER CABLE LENGTH | 3.0 m / 9.84 ft |
PLUG | UK, 3 poles, 13A; US, 2 poles, 15A, polarized; EU, 2 poles, 16A; |
NOISE EMISSION LEVEL | 67 dB (A) |
APPROVALS | CE; KC |
PROTECTION CLASS | II |
Highlights:
- Five-piece kit for overlap welding
- Two different wide slot nozzles in the kit
- Durable storage case
- One pair of spare carbon brushes included
- With silicone pressure roller
- Everything for overlap welding in a kit
- Infinitely adjustable heat gun
- Ceramic heating element
- Handy heat gun
Application:
The hot torch plastic welding gun tool is widey used for welding PVC film and TPO film, for short and small format materials. Also, this hot blast plastic welding gun welder is suitable for waterproof canvas, tarpaulins, celling cloth, etc
