Application:
Roland FJ-740 / SJ-740 / FH-740, If your printer is other 74 inch wide format
printers, please contact us before placing the order.
Note: It cannot be used in HP printers.
Model |
| |
Working Width | 1800mm | |
Voltage | 24V | |
Motor Power | 36W | |
Maximum Diameter Of Hosting Media | Ø260mm | |
Packing Size | 2460 x 410 x 440mm | |
Gross Weight | 36kg | |

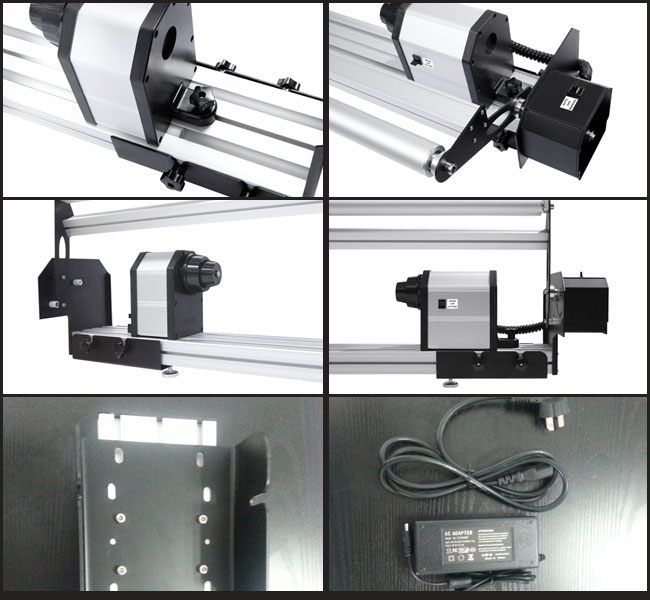

![](http://www.optim-tec.com/qfy-content/uploads/2023/06/50474308ea620c5dde6f765a068ab22d.png)
• Automated take-up system
• Inductive tension system
• Novel double-track structure
• Automatic seitch: Automatic rolling according to induction of the tension bar.
• Regarding the medium core, 2 inches(Φ48mm-Φ53mm)and 3inches(Φ75mm-Φ80mm) are available.
• Specialized universal linking slab, apply to any printers.
![](http://www.optim-tec.com/qfy-content/uploads/2023/06/016c12e478e63913d43d42eb2d26c195.png)
• Automatic rewinding, unattended production
• Tension control system could expands its application range for outdoor and indoor printing material,fabric with no elasticity and fiber material
• Bear the weight of 40-50KG
• Fixed directly without drilling holes in the machine
• Extend lifespan of motors
![](http://www.optim-tec.com/qfy-content/uploads/2023/06/33f10c25a0229796998eb5e7cc09d573.png)
• Automatic system without workman that help you save cost, save space
• More widely applicable range, Aqueous & Eco solvent & Sublimation printing materials.
There is no trouble of taking up no elasticity fabric materials such as format canvas and cloth banners.

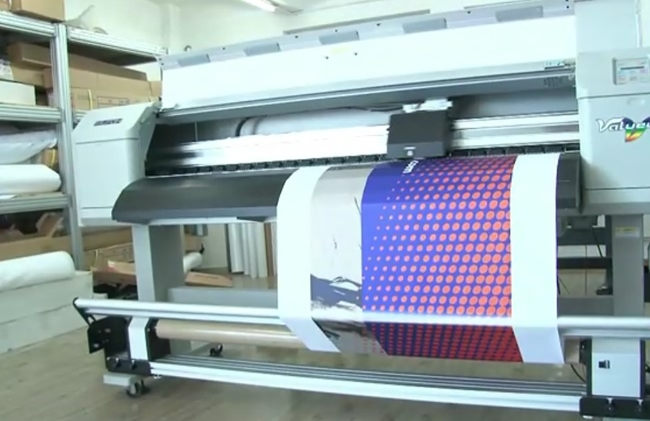

![](http://www.optim-tec.com/qfy-content/uploads/2023/06/19a1236865801e0de1b9758964b7d120.png)
To be used with:
Roland FJ-740 / SJ-740 / FH-740 Large Format
![](http://www.optim-tec.com/qfy-content/uploads/2023/06/900d4678bd847275f3231db42a21310a.png)
![Automatic Media Take-up Roller for Mutoh VJ1604 details](http://www.optim-tec.com/qfy-content/uploads/2023/06/c4f6f577a320c6c3f519a9b5c70ab3c5.png)
![](http://www.optim-tec.com/qfy-content/uploads/2023/06/2b3c7af5ce4d1c2c1db5470251165115.png)
![Automatic Media Take-up Roller for Mutoh VJ1604 usage](http://www.optim-tec.com/qfy-content/uploads/2023/06/fe6be42252c50543c16aa83139d98657.png)

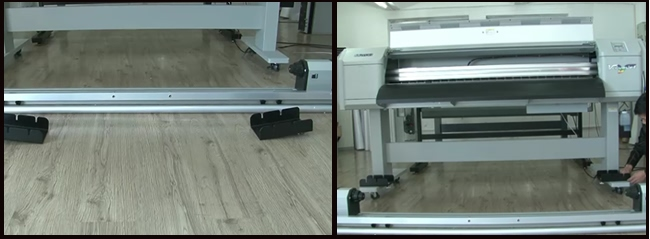

1.Open box, and separate the connecting plate and the take-up system. | 2. Mount the connecting plate. |
![Automatic Media Take-up Roller for Mutoh VJ1604 usage](http://www.optim-tec.com/qfy-content/uploads/2023/06/ee130cac3a92cd53e90bb6d6af97874e.png)
3. Loosen tension bar and set screws. | 4. Put the take-up system on the connecting platete. |
![Automatic Media Take-up Roller for Mutoh VJ1604 usage](http://www.optim-tec.com/qfy-content/uploads/2023/06/8364065bb8490af2a710ef2ffbe47921.png)
5. Tighten the screws to settle take-up system. | 6. Adjust the position of dynamic roll axis on take-up system and fasten the axis |
![Automatic Media Take-up Roller for Mutoh VJ1604 usage](http://www.optim-tec.com/qfy-content/uploads/2023/06/222738168b72727b61fd5c8c7772c4a3.png)
7. Connect the power transformer (12V) to power supply. | 8. Load the paper roll. |
![Automatic Media Take-up Roller for Mutoh VJ1604 usage](http://www.optim-tec.com/qfy-content/uploads/2023/06/e1fc1dde586984e854d0995d53d96949.png)
9. Attach take-up system to the printed material. | 10. Adjust the tension and the switch. |
![Automatic Media Take-up Roller for Mutoh VJ1604 usage](http://www.optim-tec.com/qfy-content/uploads/2023/06/9df826e48d637aeb72f7cc8ac2a7d0c6.png)
Packing List:
![]() | Take up system | 1set |
![]() | Power Cable and 24V DC Power Supply | 1set |
![]() | Hexagon Wrench | 1pc |
![]() | User Manual | 1pc |
![](http://www.optim-tec.com/qfy-content/uploads/2023/06/eee157179b8465454f40dd818aa11a7a.png)
![Automatic Media Take-up Roller for Mutoh VJ1604 application](http://www.optim-tec.com/qfy-content/uploads/2023/06/b0a433f8a9c855a21e3c097edcaa0b37.png)
For any questions,please message us via ebay.
