Description:

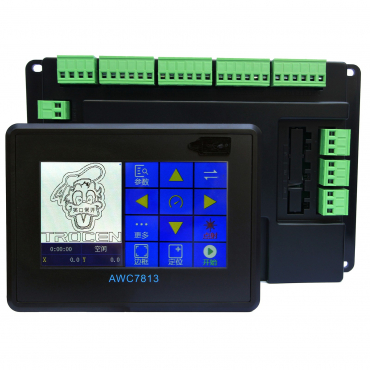

AWC7813. it also has the functions of4-axis, double-head laser independent control, double-head mutual movement, and automatic feeding.
Features:
·5-inch TFT LCD touch screen, intuitive and simple operation interface
·Using a new 32-bit high-speed DSP to make the system run faster and more stable
·Product is easy to operate, saving time after training
·Support U disk offline file preview function, real-time display of laser head movement track
·Device parameters can be set completely away from the PC
·All optocouplers isolate external electromagnetic interference, and the system works stably and reliably
·Support multi-language;
·Support USB2.0 high-speed interface, U disk read and write files are more stable, can identify various brands of U disk;
·Support network communication and USB communication, the transmission speed is faster and more stable ·Support Z-axis auto focus, Y&Z-axis dual drive function;
·Support full blowing, work blowing, layer blowing
·intelligent diagnosis system self-faut;
·One key to switch the way of manually moving the axis;
·A variety of humanized positioning modes and return modes, which are convenient for customers
with different habits to operate the machine;
·One-key continuous cutting, convenient to continue cutting after the processing file is interrupted in any way
·When adjusting the cutting effect, there are few setting parameters, and the user is easy to hold.
Product parameter:
Replace Model:AWC708S TL3120,and other brands of single-head laser control system
Power:DC24V,3A
Input:6roads
Output:8roads
Control axis:X Y Z
Control head:Single
Support laser:CO2 laser tube, RF tube
Control Laser energy:0-100% 0.1%Continuously adjustable
Accuracy:±0.01mm
Support graphics format:G-code,AI,SVG,PDF,DXF,PLT,DST,DSB,UD5,BMP,JIF,JPG,PNG etc
Support software:Laser CAD ,lightburn (Plugin support CORELDRAW,AUTOCAD, Adobe Illustrator)
Support system:Windows(Window XP,Vista,Win7,Win8,Win10 ) operating system
