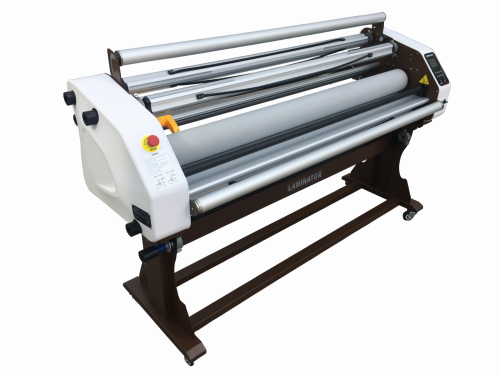

This entry level automatic machine pneumatic lifting that can handle demanding job runs, its performance surpasses the requirements of Printers and Finishers offering stand lamination service within a reasonable budget.
Max width | 1630mm | Up and down | Pneumatic | |
Max thickness | 28mm | Heating method | Infrared | |
Max speed | 9m/min | Warm up time | 5-10 min | |
Max temp | 60℃ | Roller type | Silicon | |
Volt | 120v | Diameter of roller | 120mm | |
N.W. | 150kgs | Power | 1200w | |
G.W. | 217kgs | Dimension (LWH) | 2260x860x750mm |

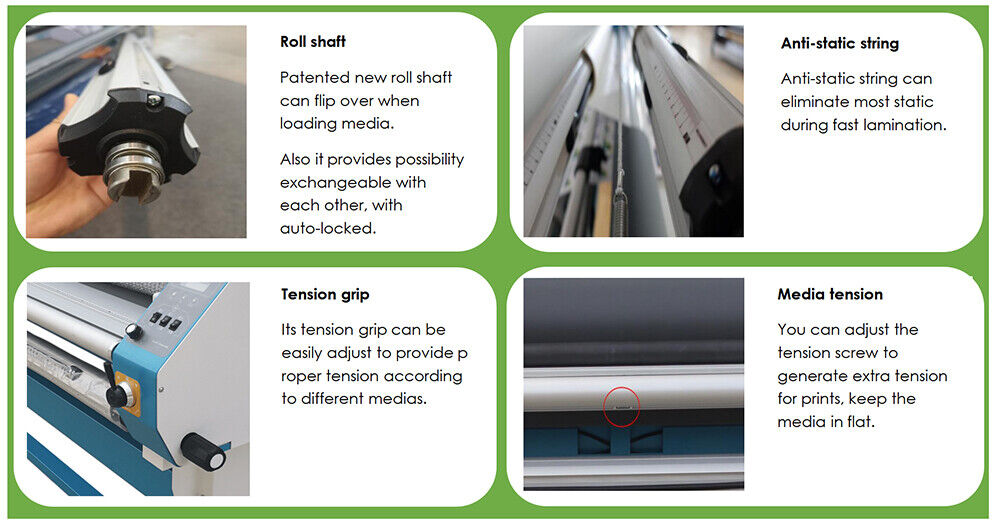

1. Unique Functions

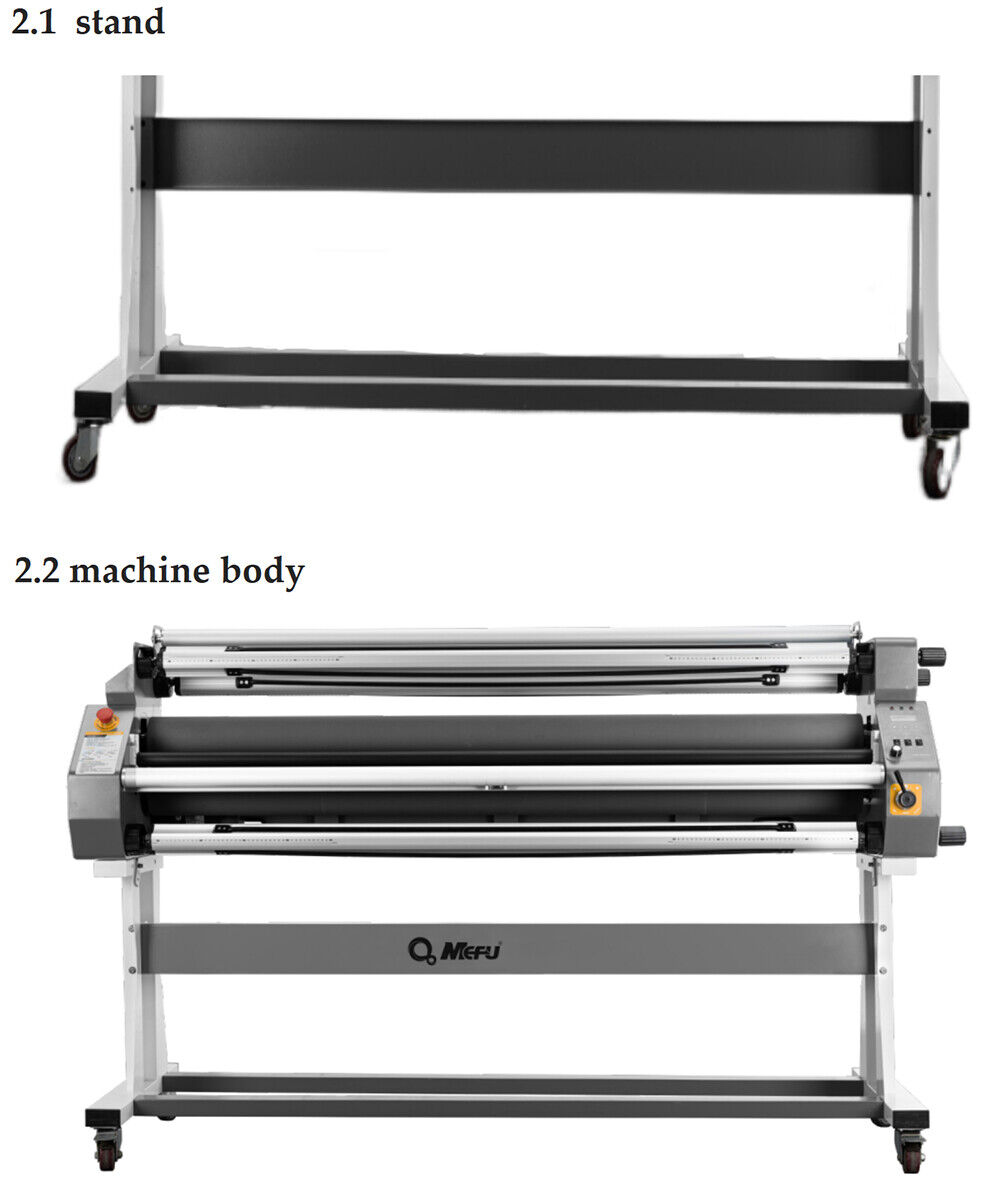

2. Installation

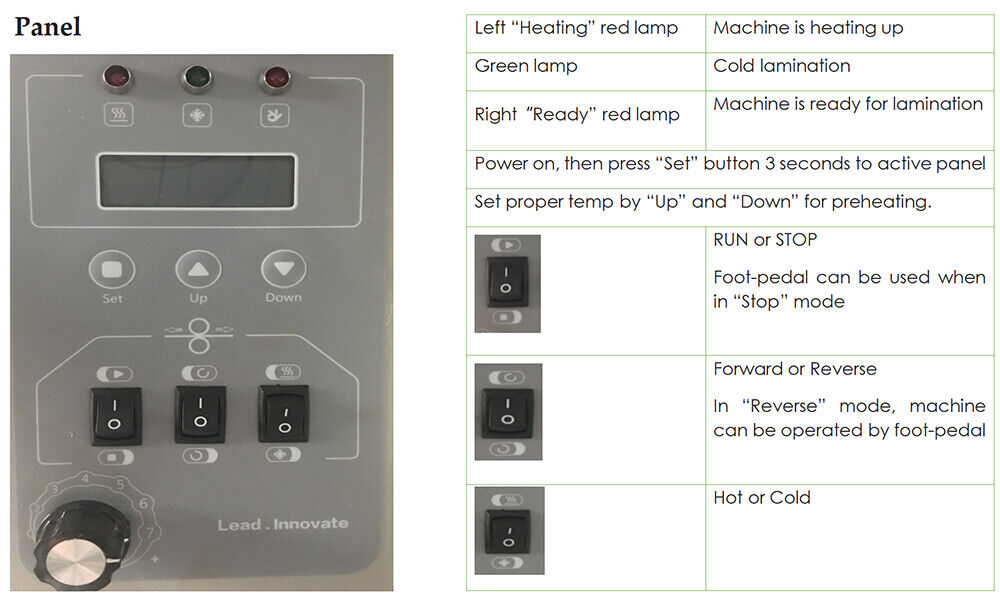

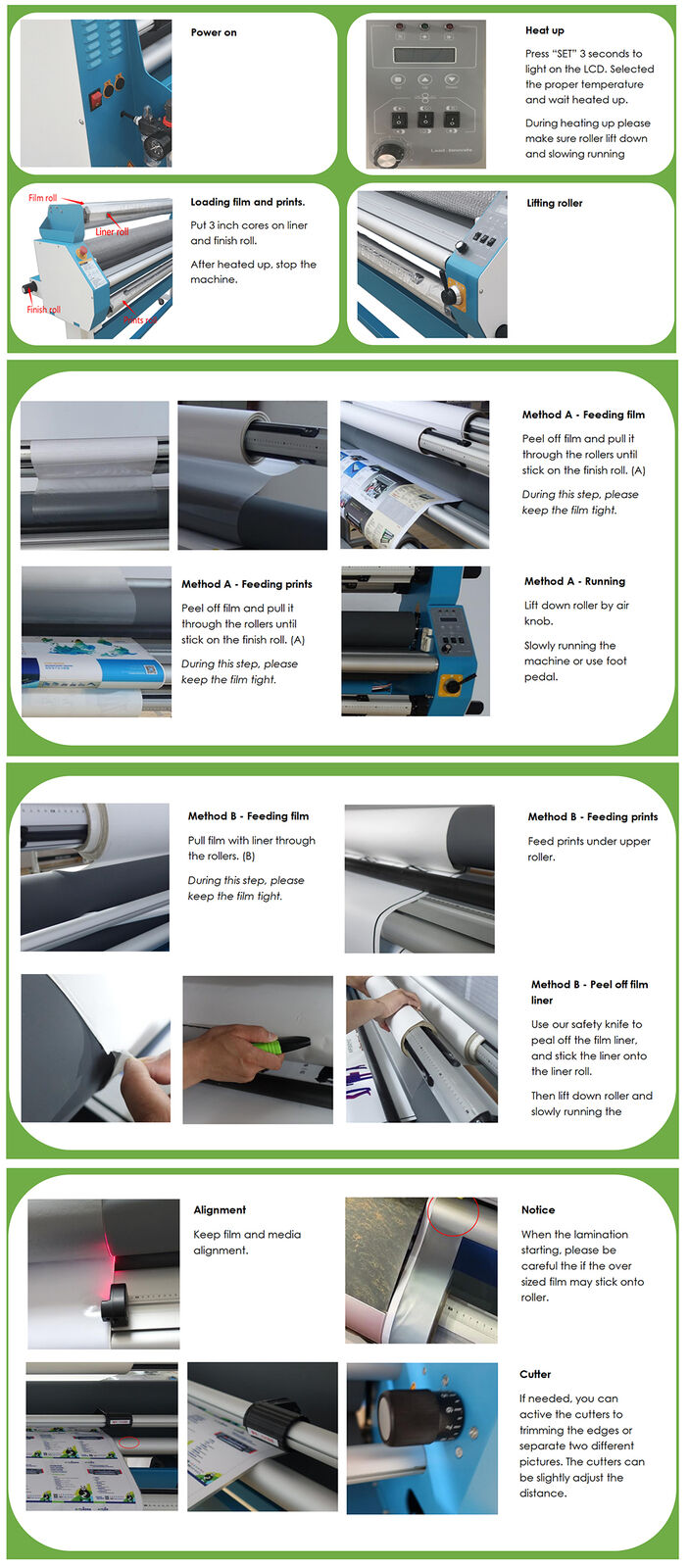

3. Operation

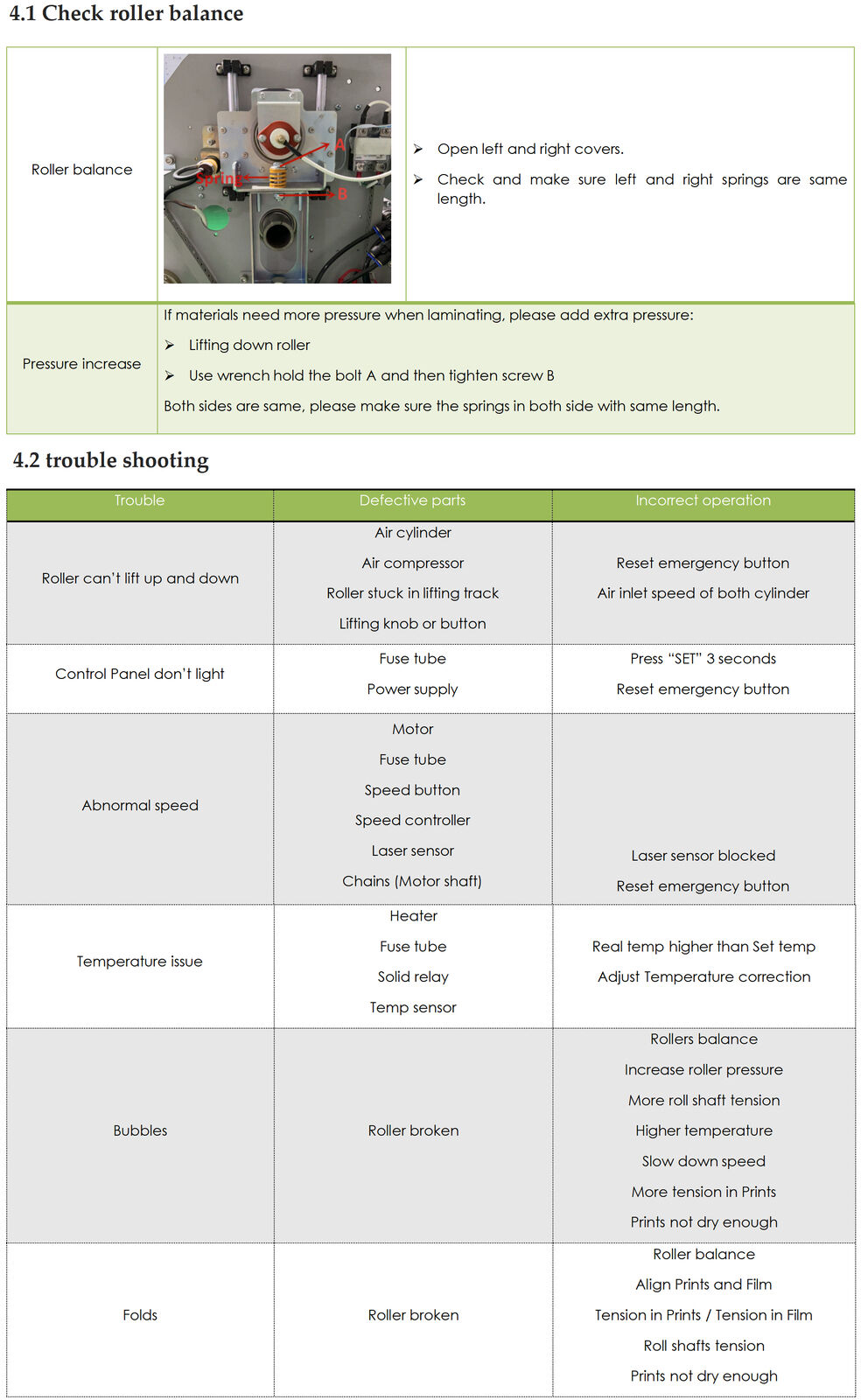

4. Trouble Shooting

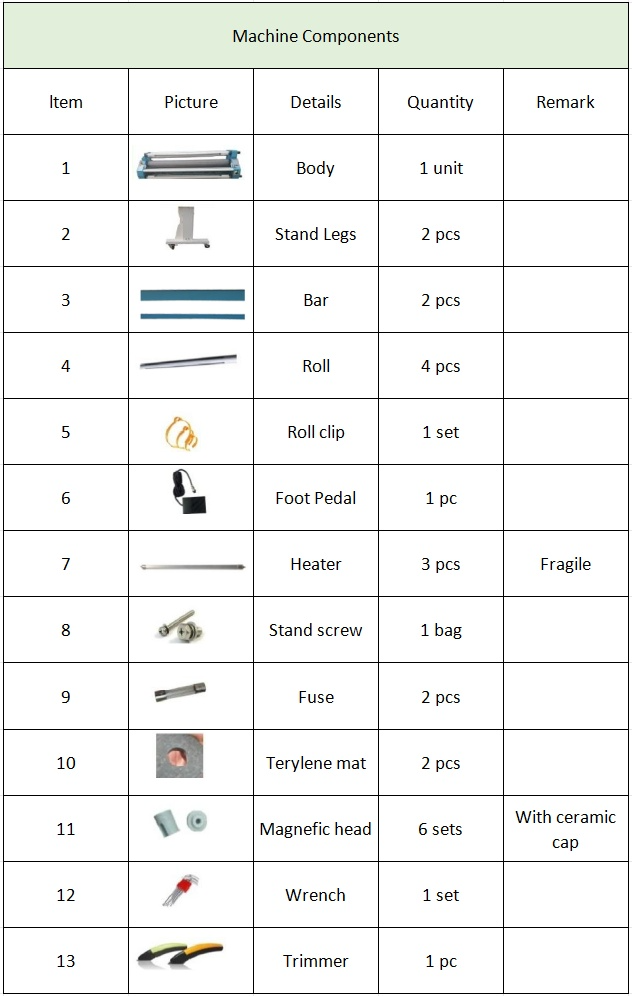

5. Package List
