The FUSION 3 extrusion welder stands out with its slim design and makes for a comfortable welding process with a high output volume. In two different versions, the extruder processes PE and PP of 3-4 mm / 0.12 - 0.16 inches or 4-5 mm / 0.16 - 0.2 inches welding rod, which is fed on both sides. Integrated motor start-up protection prevents a cold start of the extruder. Thanks to its slim design, FUSION 3 is ideally suited for work in civil engineering. For example, welding that requires lots of standing.
Technical Data
Voltage: 230V
Frequency: 50/60 Hz
Power: 3500 W
| Article | Voltage | Plug |
| 118.300 | 230 V | EU, 2 poles, 16A |
| 140.020 | 230 V | CEE blue, 3 poles, 16A |
| 143.835 | 230 V | CEE blue, 3 poles, 16A |
| 144.615 | 230 V | EU, 2 poles, 16A |
Material Output ø 3 mm: 2 - 2.5 kg/h / 4.4 - 5.51 lb/h
Material Output ø 4 mm: 2.7 - 3.6 kg/h / 5.95 - 7.93 lb/h
Weldable Sheet/Membrane Thickness: 15 - 25 mm / 0.59 - 0.98 in
Welding Rod: ø 4–5mm / 0.16–0.2 in
Material Output ø 4 mm: 2.1 - 2.6 kg/h / 4.62 - 5.73 lb/h
Material Output ø 5 mm: 2.7 - 3.6 kg/h / 5.95 - 7.93 lb/h
Weldable Sheet/Membrane Thickness: 1 - 3 mm / 0.03 - 0.11 in
Welding Materials: HDPE; LDPE; LLDPE; PP
Air Guide: Internal
Screw Heating: Air heated
Air Temperature Control: Open loop
LQS: No
Display: No
Brushless Blower Motor: No
Brushless Drive Motor: No
LED Working Light: No
Length: 670 mm / 26.37 in
Width: 90 mm / 3.54 in
Height: 180 mm / 7.08 in
Weight: 7.2 kg / 15.87 lb
Power Cable Length: 5 m / 16.4 ft
Noise Emission Level: 86 dB (A)
Approvals: CB Certification; CE; UKCA
Protection Class: II
Country Of Origin: Switzerland
Feature:
- Very high welding power
- Long, narrow extruder
- Site-ready extrusion welder
- Cold start protection for drive motor
- Adjustable output volume
HIGHLIGHTS Handheld extruder
√ WELDING POWER Very high output volume
At 1.8-3.6 kg/h or respectively 4 - 7.5 lbs/hr, the FUSION 3 features an especially high output volume.
√ SLIM Ergonomic working thanks to device's shape
Thanks to the shape and length of the FUSION 3, users take an upright stance in the welding process.
√ VERSATILE Rotating welding shoe
Thanks to its 360° rotating welding shoe, the FUSION 3 is an exceptionally versatile extruder.
APPLICATIONS Virtually unlimited

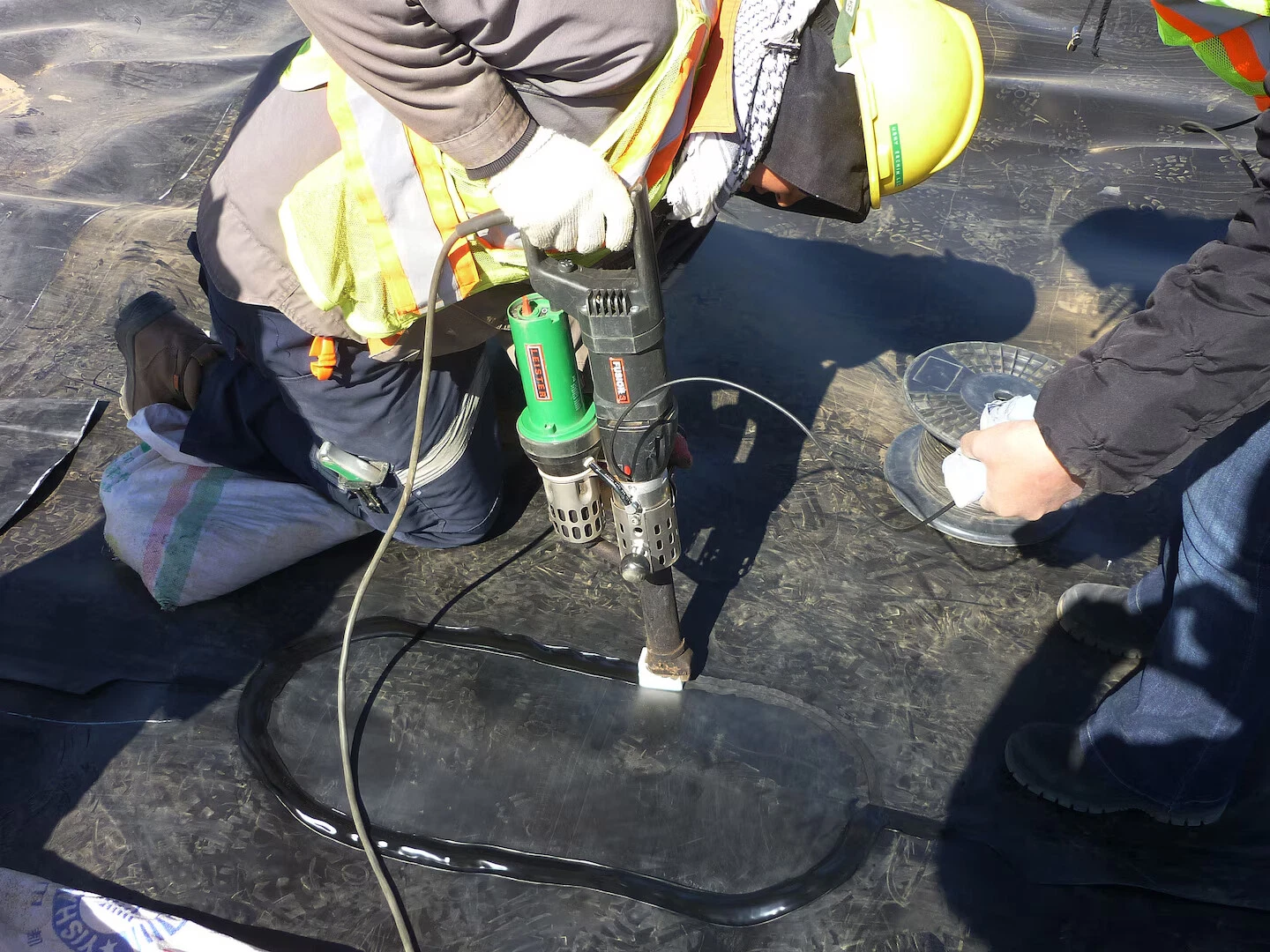

Landfill and mining membrane welding
Foundation waterproofing
Reservoirs and canals waterproofing
