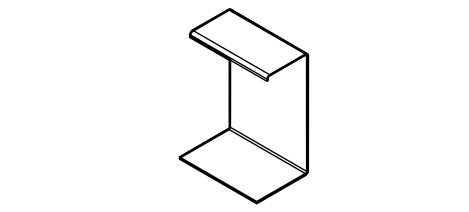

Roof structure profile kit for roof welding

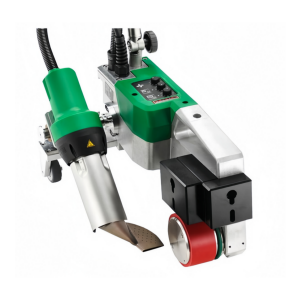

The new UNIROOF ST automatic roof welder is the service-friendly partner for welding thermoplastic membranes on flat roofs and roofs with low slopes (up to 30°). Its slim housing construction and movable transportation axle means that time-consuming modifcation of the welder is eliminated. The UNIROOF can easily weld as close as 100 mm (4 inches) from the edge whether on the parapet, flat surfaces or any difficult to reach roof “problem zones.” With 3,400W of power, 230V and 15 A in the box, the UNIROOF provides fast-paced, top performance on any roof.
| Voltage | 220 – 240V |
| Frequenz | 50/60Hz |
| Power | 3450W |
| Temperature, stepless | 210 – 1150°F |
| Air flow range | 45 – 100% |
| Drive speed, stepless | 3.3 – 33.0ft/min |
| Size (L × B × H) | 18.7 × 9.6 × 10.3 inch |
| Weight | 38.6 (incl. 3 additional weights) lbs |
| Materials | PP, PVC, TPO, ECB, EPDM, EVA, FPO, PO, PIB (other materials upon request) |
| Operation | Potentiometer |
Package include：
1. Accessories UNIROOF AT/ST - 155.325
2. Additional weight, front - 152.742 Additional weight, lateral - 152.741
3. Nozzle calibration device - 154.462
3. Nozzle calibration device - 154.462
4. 2 welding plates for optimum welding start - 132.429
5. Steelbrush to clean nozzle - 138.817
6.Transportation axle 11.8 inch - 154.522
7. Storage case UNI - 154.827
8. Locking plate for additional weights - 155.577

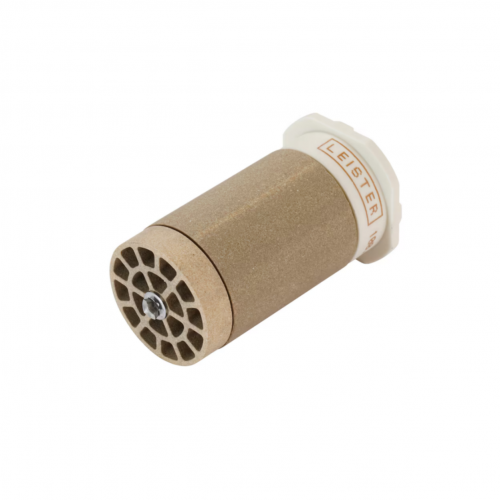

9. Heating element 230 V / 3300 W - 155.473

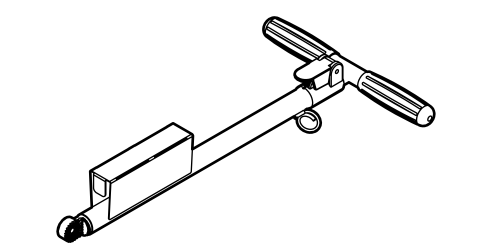

10. T-shape guide bar - 137.843
- No resetting: Thanks to the movable transport axle, the new UNIROOF handles welding close to the edge, on top of the parapet
- Reliable Swiss quality
- The maintenance-free drive motor integrated into the pressure wheel, translates to significantly better optimized overall performance and low maintenance
- Design proven on construction sites to be ergonomic, portable and optimal for operation
- More efficiency on the construction site: The new UNIROOF ST outperforms comparable machinery by up to 38%
- Roof structure profile kit for roof welding
