TWINNY T5

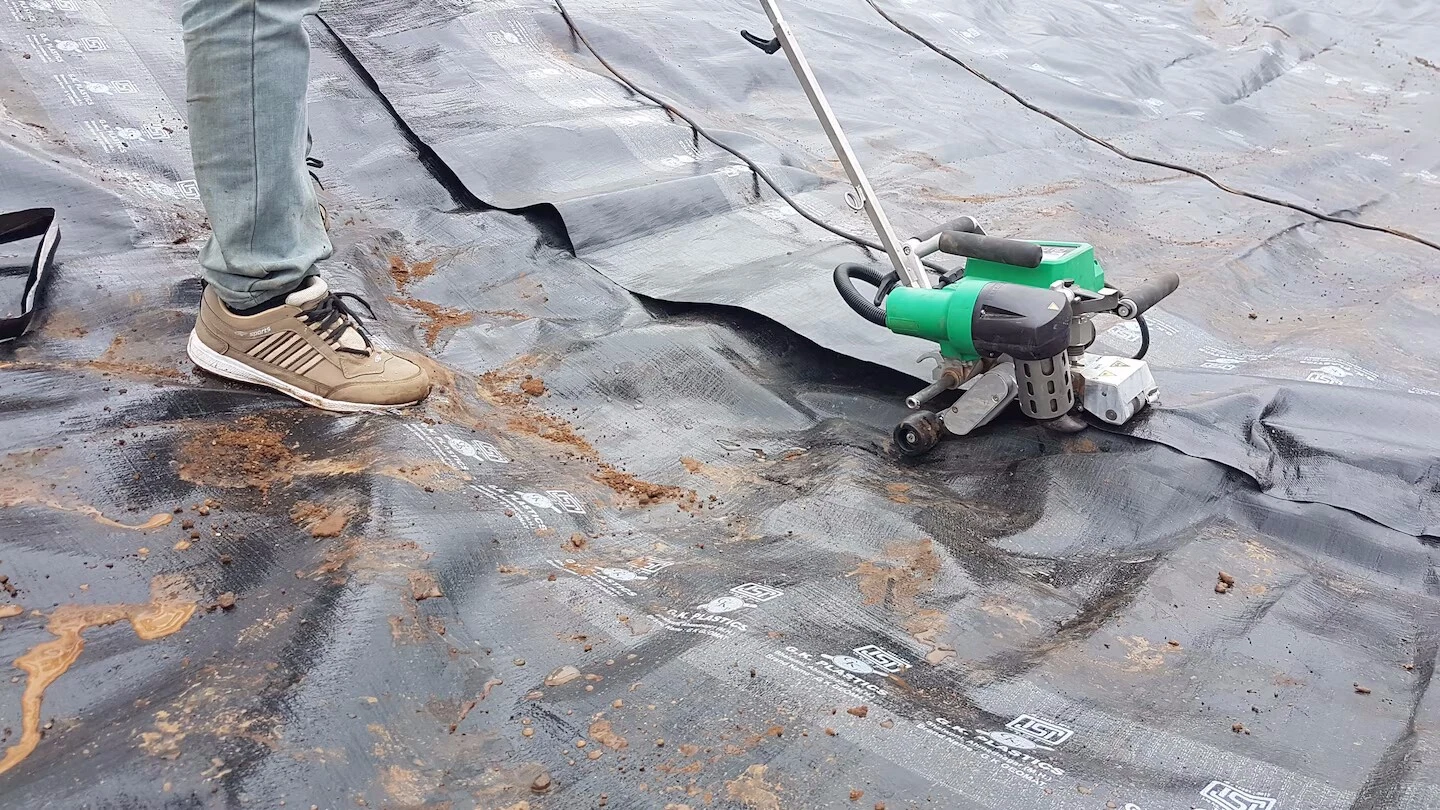

The TWINNY T5 automatic welding machine is suitable for welding various geomembranes made of HDPE and LDPE. Additionally, foils made of PVC, TPO, FPO, PP and SPE can also be welded without any problems. The plastic welding tool can be used in construction of tunnels, swimming pools, fish farms, mining and landfill.The welder is practical and user friendly. Even without much training, the TWINNY T5 welding machine can weld quickly in a professional manner. The large travel rollers (field kit) provide more ground clearance, which helps with plastic welding on rough or uneven surfaces. The TWINY T5s handles are well-positioned, making it easy to guide, move or transport the machine. Thanks to the powerfully designed drive, plastic welding with the TWINNY T5 is particularly maintenance friendly. The welding speed of the TWINNTY T5 has been significantly improved compared with its predecessor, TWINNY T, thanks to the powerful blower and the significantly higher heating output. The TWINNY T5 is approximately 50% faster than the TWINNY T automatic welder. This saves a lot of time and money welding big geomembrane projects.
TECHNICAL DATA
| Article | Voltage | Power | Test Channel | Comi-wedge version | Plug |
| 164.232 | 120 V | 1800 W | Yes | Short | CEE Yellow, 3 poles, 16A |
| 164.233 | 120 V | 1800 W | No | Short | CEE Yellow, 3 poles, 16A |
| 164.222 | 230 V | 3450 W | Yes | Long | EU, 3 poles, 16A |
| 164.223 | 230 V | 3450 W | Yes | Long | CEE blue, 3 poles, 16A |
| 164.224 | 230 V | 3450 W | Yes | Short | EU, 3 poles, 16A |
| 164.225 | 230 V | 3450 W | Yes | Short | CEE blue, 3 poles, 16A |
| 164.226 | 230 V | 3450 W | No | Long | EU, 3 poles, 16A |
| 164.228 | 230 V | 3450 W | No | Short | EU, 3 poles, 16A |
| 164.229 | 230 V | 3450 W | No | Short | CEE blue, 3 poles, 16A |
Temperature: 100 - 560 °C / 212 - 1040 °F
Air Volume Adjustable: Yes
Speed: 0.8 - 8 m/min / 2.62 - 26.24 ft/min
Welding Technology: Combi-Wedge
Combi-Wedge Version: Short
Hot Wedge Width: 50 mm / 1.96 in
Hot Wedge Material: Stainless Steel
Max. Overlap: 125 mm / 4.92 in
Max. Welding Pressure: 1000 N / 224.8 lbf
Weld Seam Width: 2 x 15 mm / 2 x 0.59 in
Roll Material:Steel Roller Sharp Diagonal
Travel Roller Equipment: Field-Kit
LQS: No
Brushless Blower Motor: No
Display: Yes
Length: 350 mm / 13.77 in
Width: 360 mm / 14.17 in
Height: 260 mm / 10.23 in
Weight: 9.9 kg / 21.82 lb
Welding Materials: CSPE; EPDM; FPO; HDPE; LDPE; LLDPE; PP; PVC; TPO
Weldable Material Thicknesses: 0.3 - 3 mm / 11.81 - 118.11 mil
Power Cable Length: 3 m /9.84 ft
Approvals: CE; UKCA
Protection Class: I
Country Of Origin: Switzerland
Feature:
1. Digital display shows speed and temperature
2. Mechanical over pressure protection
3. Welding speed is 50% faster than the TWINNY T
4. Easy to operate, thanks to hot-air technology
HIGHLIGHTS Easy to use
1. PRECISE: Easy geomembrane welding
The combination wedge process with hot air allows perfect welding, even under adverse environmental conditions or with inexperienced users.
2. ECONOMICA: Fast geomembrane welding
Geomembranes are welded at speeds up to 50% faster than TWINNY T. Save time and money on particularly large-scale geosynthetic projects, such as landfill engineering.
3. LIGHT: Easy to carry and use
Weighing less than 10 kg, the TWINNY T5 automatic welder is easy to transport and use.
APPLICATIONS Virtually unlimited
Aquaculture construction and repair
Foundation waterproofing
Landfill and mining membrane welding
Pond waterproofing
Reservoirs and canals waterproofing
Pool waterproofing
