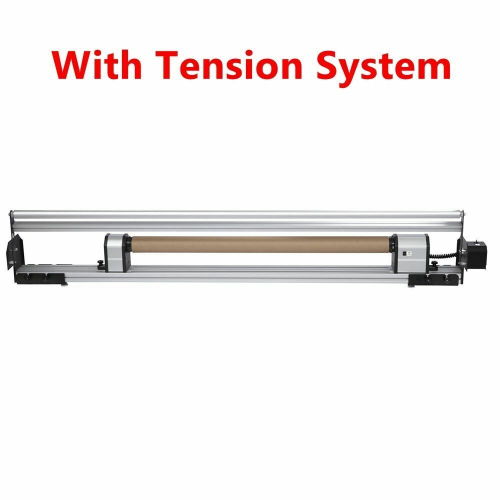

64'' Auto Media Take up Reel With Tension System for Mimaki UCJV300-160 Printer

Model	SUDP-018
Working Width	1800mm
Voltage	24V
Motor Power	36W
Maximum Diameter Of Hosting Media	Ø260mm
Packing Size	2420 x 380 x 380mm
Gross Weight	33kg



 • Automated take-up system
 • Inductive tension system
 • Novel double-track structure
 • Automatic seitch: Automatic rolling according to induction of the tension bar.
 • Regarding the medium core, 2 inches(Φ48mm-Φ53mm)and 3inches(Φ75mm-Φ80mm) are available.
 • Specialized universal linking slab, apply to any printers.



• Automatic rewinding, unattended production

• Tension control system could expands its application range for outdoor and indoor printing      material,fabric with no elasticity and fiber material


• Bear the weight of 40-50KG

• Fixed directly without drilling holes in the machine


• Extend lifespan of motors


 • Automatic system without workman that help you save cost, save space
 • More widely applicable range, Aqueous & Eco solvent & Sublimation printing materials.
 There is no trouble of taking up no elasticity fabric materials such as format canvas and cloth banners.









1.Open box, and separate the connecting  plate and the take-up system.

2. Mount the connecting plate.



3. Loosen tension bar and set screws.

4. Put the take-up system on the connecting platete.



5. Tighten the screws to settle take-up system.

6. Adjust the position of dynamic roll axis on  take-up system and fasten the axis



7. Connect the power transformer (12V) to power supply.

8. Load the paper roll.



9. Attach take-up system to the printed material.

10. Adjust the tension and the switch.



	Take up system	1set
	Power Cable and 24V DC Power Supply	1set
	Hexagon Wrench	1pc
	User Manual	1pc
