Description:
The energy HT1600 Digital overlap welding kit from Weldy, is affordable for craftsmen and DIYers who want to overlap weld thermoplastics such as PE, PP and PVC (vinyl).

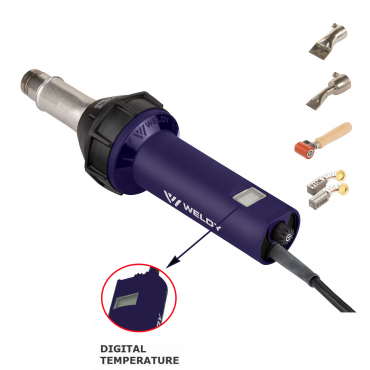

The kit consists of the following five items: Weldy energy HT1600 D heat gun, 40 mm wide slot nozzle, 20 mm wide slot nozzle, 40 mm pressure roller made of silicone and spare carbon brushes for the blower motor.
The Weldy HT 1600 heat gun has an LCD display that provides continuous digital temperature control from 40°C (104°F) to 620°C (1,148°F). The main applications for the energy HT1600 D overlap welding kit are overlap welding roofing membranes, shrinking foils, as well as welding floor coverings. Additionally, it’s used to dry and activate adhesives and fillers, shrink car wraps, as well as the process sensitive materials like leather and imitation leather (e.g. car interior).
Specification:
VOLTAGE | 120V / 230V |
|---|---|
FREQUENCY | 50/60 Hz; 60 Hz |
POWER | 1600W |
TEMPERATURE | 40 - 620 °C / 104.0 - 1148.0 °F |
TEMPERATURE SETTING STEPLESS | Yes |
AIRFLOW (20°C) | 120-240 l/min / 4.23-8.47 cfm |
STEPLESS AIR VOLUME ADJUSTMENT | Yes |
STATIC PRESSURE | 2600 Pa / 0.37 psi |
ECO-MODE | No |
DISPLAY | Yes |
E-DRIVE | Yes |
OUTDOOR USE | Yes |
NOZZLE CONNECTION Ø | 31.5 mm / 1.25 in |
LENGTH | 360.0 mm / 14.17 in |
DEVICE DIAMETER | 101 mm / 3.97 in |
HANDLE DIAMETER | 59 mm / 2.32 in |
WEIGHT | 1.2 kg / 2.64 lb |
POWER CABLE LENGTH | 3.0 m / 9.84 ft |
PLUG | UK, 3 poles, 13A; US, 2 poles, 15A, polarized; EU, 2 poles, 16A; |
NOISE EMISSION LEVEL | 67 dB (A) |
APPROVALS | CE |
PROTECTION CLASS | II |
Highlights:
- Five-piece Weldy kit for overlap welding
- Two different wide slot nozzles included
- Pair of spare carbon brushes included
- Silicone pressure roller included
- Heat gun with robust brush motor
- Ceramic heating element
- Handy heat gun with ergonomic handle
- Heat gun with digital temperature setting
- Delivered in a durable storage case
Application:
The hot torch plastic welding gun tool is widey used for welding PVC film and TPO film, for short and small format materials. Also, this hot blast plastic welding gun welder is suitable for waterproof canvas, tarpaulins, celling cloth, etc
The hot torch plastic welding gun tool is widey used for welding PVC film and TPO film, for short and small format materials. Also, this hot blast plastic welding gun welder is suitable for waterproof canvas, tarpaulins, celling cloth, etc
