Description:

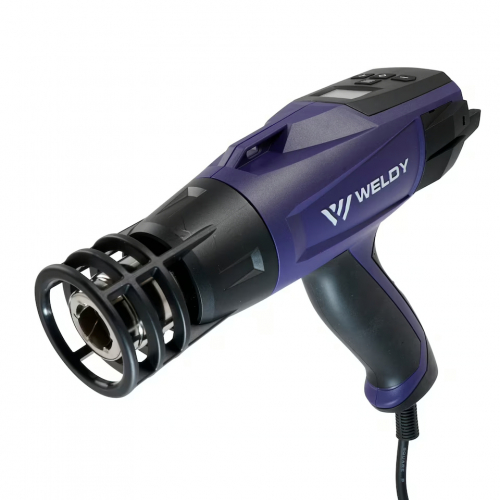

The energy HT1600 heat gun from Weldy is very powerful. It is equipped with a stepless temperature control up to 700 °C / 1292 °F and a robust brush motor with ceramic heating element. The plastic welding device is suitable for a variety of professional and handyman tasks. Weighing only 1 kg / 2.2 lbs, the energy HT1600 heat gun makes work extremely easy. Various accessories available from Leister include nozzles and welding rod to quarter moon knifes, enabling a multitude of applications.
The Weldy HT 1600 heat gun can also be purchased in three other editions as a complete set. The "plastic kit" variant, including a 5 mm / 0.19 inch tube nozzle and a 4 mm / 0.16 inch quick welding nozzle; the variant "overlap kit" has two overlap nozzles, each 40 mm and 20 mm / 0.8 inch, and a silicone pressure roller. Last, but not least, the "shrinkage kit" is equipped with two overlap nozzles, 40 mm / 0.16 inch and 20 mm / 0.8 inch, and a reflector nozzle. The Weldy manual welding kits are supplied with operating instructions in 28 languages and a durable plastic tool case. In the standard design, Weldy HT1600 has cardboard packaging.
Specification:
| VOLTAGE | 120V / 230V |
|---|---|
| FREQUENCY | 50/60 Hz; 60 Hz |
| POWER | 1600W |
| TEMPERATURE | 40 - 700 °C / 104.0 - 1292.0 °F |
| TEMPERATURE SETTING STEPLESS | Yes |
| AIRFLOW (20°C) | 240 l/min / 8.47 cfm |
| STEPLESS AIR VOLUME ADJUSTMENT | No |
| STATIC PRESSURE | 2600 Pa / 0.37 psi |
| ECO-MODE | No |
| DISPLAY | No |
| E-DRIVE | No |
| OUTDOOR USE | Yes |
| NOZZLE CONNECTION Ø | 31.5 mm / 1.25 in |
| LENGTH | 346.0 mm / 13.62 in |
| DEVICE DIAMETER | 101 mm / 3.97 in |
| HANDLE DIAMETER | 59 mm / 2.32 in |
| WEIGHT | 0.99 kg / 2.18 lb |
| POWER CABLE LENGTH | 3.0 m / 9.84 ft |
| PLUG | UK, 3 poles, 13A; US, 2 poles, 15A, polarized; EU, 2 poles, 16A; |
| NOISE EMISSION LEVEL | 67 dB (A) |
| APPROVALS | CE; KC |
| PROTECTION CLASS | II |
Highlights:
1. Proven heat gun
2. Ceramic heating element
3. Cool-down function4. Durable housing
5. Temperature reaches up to 700 °C / 1292 °F
6. Dust protection
Application:
The hot torch plastic welding gun tool is widey used for welding PVC film and TPO film, for short and small format materials. Also, this hot blast plastic welding gun welder is suitable for waterproof canvas, tarpaulins, celling cloth, etc
