Description:

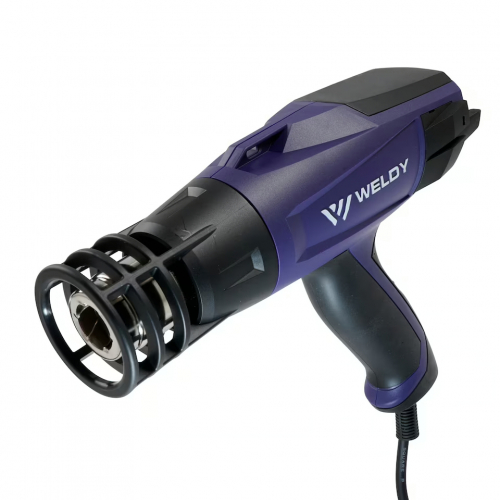

The HG 530-A is a compact, lightweight, and ergonomic Weldy heat gun. Due to its high heating and blower capacity, it is one of the more powerful heat guns from Weldy. Infinitely variable, digital temperature control keeps a constant operating temperature between 80 °C to 650 °C respectively 176 °F and 1202 °F regardless of the air quantity setting and the nozzle accessory used. The multifunctional HG 530-A heat gun is suitable for wide variety of industrial applications, including car wrapping, cable shrinkage, loosening screws or fittings, etc.
The configurable energy-saving eco mode is activated via its sensor as soon as the operator puts the heat gun down. Weighing just 750 g / 1.65, the HG 530-A can be used for prolonged periods in hot-air applications without fatigue. Its soft-touch handle and well-balanced design ensure that it can be held securely and comfortably for any hot-air application. Additional functions including digital temperature control and eco mode set it apart from other products on the market, as well as the HG 530-S heat gun.
Specification:
VOLTAGE | 230 V |
|---|---|
FREQUENCY | 50/60 Hz |
POWER | 2300W |
TEMPERATURE | 80 - 650 °C / 176.0 - 1202.0 °F |
TEMPERATURE SETTING STEPLESS | Yes |
AIRFLOW (20°C) | 200 - 550 l/min / 7.06 - 19.42 cfm |
STEPLESS AIR VOLUME ADJUSTMENT | Yes |
ECO-MODE | Yes |
DISPLAY | Yes |
OUTDOOR USE | No |
NOZZLE CONNECTION Ø | 35.5 mm / 1.4 in |
DIAMETER | 250 x 80 x 230 mm / 9.84 x 3.14 x 9.05 in |
HANDLE DIAMETER | 45 mm / 1.77 in |
WEIGHT | 0.75 kg / 1.65 lb |
POWER CABLE LENGTH | 2.0 m / 6.56 ft |
NOISE EMISSION LEVEL | 67 dB (A) |
APPROVALS | CE; KC |
PROTECTION CLASS | II |
Warm Tips:
The wedge welder is 230V (single phase). When it is used in 110V countries, you
need to prepare one generator or power transformer to match the power
source. Otherwise it may not be suitable for you. Please ensure that you have
noticed this problem before you place order.
The wedge welder is 230V (single phase). When it is used in 110V countries, you
need to prepare one generator or power transformer to match the power
source. Otherwise it may not be suitable for you. Please ensure that you have
noticed this problem before you place order.
Highlights:
- Powerful in work mode, power-saving in Eco-Mode
- Infinitely variable digital temperature control
- Ergonomically designed, balanced, soft handle
- Various functions for industrial applications
- Temperature and air stage storage
- high heat and blowing performance
- Constant working temperature
- For industrial use
