Application:
Mimaki UCJV300-160, If your printer is other 74 inch wide format
printers, please contact us before placing the order.
Note: It cannot be used in HP printers.
Model |
| |
Working Width | 1800mm | |
Voltage | 24V | |
Motor Power | 36W | |
Maximum Diameter Of Hosting Media | Ø260mm | |
Packing Size | 2420 x 380 x 380mm | |
Gross Weight | 33kg | |
![](http://www.optim-tec.com/qfy-content/uploads/2023/06/a05809e530087fb0d10267d4d13d0965.png)
• Automated take-up system
• Inductive tension system
• Novel double-track structure
• Automatic seitch: Automatic rolling according to induction of the tension bar.
• Regarding the medium core, 2 inches(Φ48mm-Φ53mm)and 3inches(Φ75mm-Φ80mm) are available.
• Specialized universal linking slab, apply to any printers.
![](http://www.optim-tec.com/qfy-content/uploads/2023/06/5302c5296ec5da070741795ce1662d9d.png)
• Automatic rewinding, unattended production
• Tension control system could expands its application range for outdoor and indoor printing material,fabric with no elasticity and fiber material
• Bear the weight of 40-50KG
• Fixed directly without drilling holes in the machine
• Extend lifespan of motors
![](http://www.optim-tec.com/qfy-content/uploads/2023/06/451c234f691c52c8e6350e4fa1f4c563.png)
• Automatic system without workman that help you save cost, save space
• More widely applicable range, Aqueous & Eco solvent & Sublimation printing materials.
There is no trouble of taking up no elasticity fabric materials such as format canvas and cloth banners.
![](http://www.optim-tec.com/qfy-content/uploads/2023/06/d018686d6e0709af1aa53c9bdda381b8.png)
To be used with:
Mimaki UCJV300-160 Large Format
![](http://www.optim-tec.com/qfy-content/uploads/2023/06/b1e37959f47646f11c1b7cfe84dfcabd.png)
![Automatic Media Take-up Roller for Mutoh VJ1604 details](http://www.optim-tec.com/qfy-content/uploads/2023/06/fe3acdd3542cd59756fb002af3e7595e.png)
![](http://www.optim-tec.com/qfy-content/uploads/2023/06/c28276eca7278dddab5f2a5e8dee53e3.png)
![Automatic Media Take-up Roller for Mutoh VJ1604 usage](http://www.optim-tec.com/qfy-content/uploads/2023/06/70faca01beb628ccca2bde2a596dcead.png)

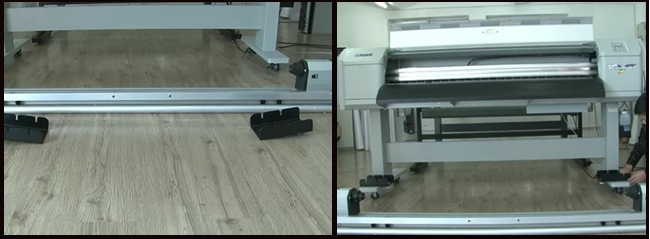

1.Open box, and separate the connecting plate and the take-up system. | 2. Mount the connecting plate. |
![Automatic Media Take-up Roller for Mutoh VJ1604 usage](http://www.optim-tec.com/qfy-content/uploads/2023/06/9744c243ba667db8ad1ec7db9671bb69.png)
3. Loosen tension bar and set screws. | 4. Put the take-up system on the connecting platete. |
![Automatic Media Take-up Roller for Mutoh VJ1604 usage](http://www.optim-tec.com/qfy-content/uploads/2023/06/67226183075119338c8b103c63cee4e6.png)
5. Tighten the screws to settle take-up system. | 6. Adjust the position of dynamic roll axis on take-up system and fasten the axis |
![Automatic Media Take-up Roller for Mutoh VJ1604 usage](http://www.optim-tec.com/qfy-content/uploads/2023/06/1d074f25de5182a1559c7447344205d4.png)
7. Connect the power transformer (12V) to power supply. | 8. Load the paper roll. |
![Automatic Media Take-up Roller for Mutoh VJ1604 usage](http://www.optim-tec.com/qfy-content/uploads/2023/06/6b85ec9d305ea77a9bcc33f1bf1fcece.png)
9. Attach take-up system to the printed material. | 10. Adjust the tension and the switch. |
![Automatic Media Take-up Roller for Mutoh VJ1604 usage](http://www.optim-tec.com/qfy-content/uploads/2023/06/3b1f6740f30d1cae5e1c0d4e1fa06b19.png)
Packing List:
![]() | Take up system | 1set |
![]() | Power Cable and 24V DC Power Supply | 1set |
![]() | Hexagon Wrench | 1pc |
![]() | User Manual | 1pc |
![](http://www.optim-tec.com/qfy-content/uploads/2023/06/47409185421240ea5c230e878fb77023.png)
![Automatic Media Take-up Roller for Mutoh VJ1604 application](http://www.optim-tec.com/qfy-content/uploads/2023/06/c2d940a1fba8ac85ab20c97e4a807739.png)
For any questions,please message us via ebay.
